Injection molding is a manufacturing technique for mass-producing a variety of plastic products. In order to increase the efficiency of this process, it is vital to use durable moulds in order to ensure that the quality of the parts produced is consistently high.
This is where mold flow analysis is crucial. Engineers and designers can take into account the capricious nature of molten plastics in advance with mold flow analysis to predict and correct defects before they occur.
The purpose of this article is to shed light on the nature of MFA and to illustrate its critical role in pushing the boundaries of conventional injection molding. You will learn the basics of MFA, understand its inner workings and appreciate the nuances of its benefits.
What is mold flow analysis?
Mold flow analysis (MFA) is a specialised software program that digitally simulates the flow of resin through part geometry during the injection molding process. By creating detailed simulations, MFA helps to anticipate and solve potential problems during the design and manufacturing stages, thereby improving the overall efficiency and quality of the final product.
The software simulates how molten plastic flows, cools and solidifies in the mould, providing key insights into the behaviour and properties of injectable materials.
Mold flow analysis also generates detailed colour plots for us to visually represent the various dynamics within the mould, including injection pressure, fibre orientation, bubble formation and temperature changes.
The role of mold flow analysis in injection molding
Mold Flow Analysis (MFA) plays a key role in improving the accuracy, quality and efficiency of the injection molding process. By simulating all aspects of plastic flow, cooling and solidification within the mould, MFA provides guidance for adjustment and optimisation.
Filling Analysis
- Purpose: Filling analysis helps to visualise the progression of the melt front as the molten plastic enters the mould.
- Benefits: By predicting filling patterns, it identifies potential problems that can affect product integrity, such as short shots (incomplete filling) and air pockets.
Holding Pressure Analysis
- Purpose: This analysis examines how the molten plastic fills into the mould after filling.
- Benefits: It evaluates the pressure distribution within the mould and identifies areas where there may be holding pressure problems that can cause shrinkage or warpage as the material cools and solidifies.
Cooling Analysis
- Purpose: Cooling analysis simulates the cooling process of injected plastics.
- Benefits: It helps to optimise cooling time and uniformity and to manage residual stresses, which are critical to the mechanical properties and dimensional stability of moulded parts.
Warpage Analysis
- Purpose: To predict the deformation of a part after it has been ejected from the mould.
- Benefits: Identifies potential areas of warpage and allows design modifications to enhance the mould and product design, thus improving stability.

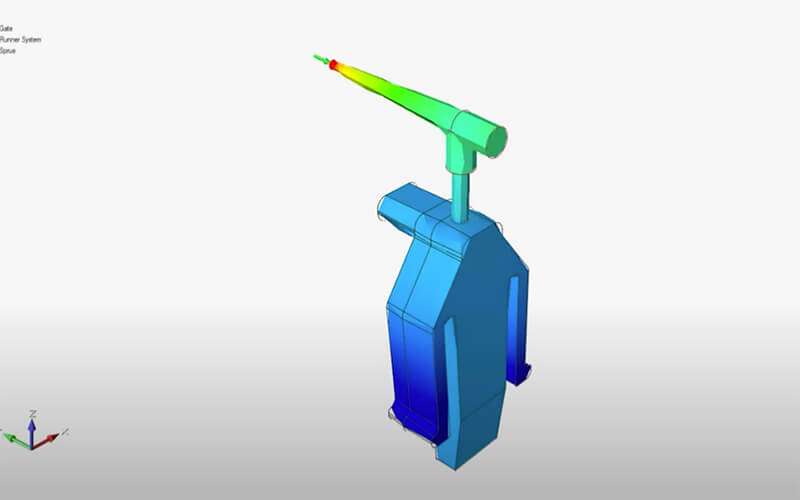

Gate Location Analysis
- Purpose: To determine the optimum location of the gate (entrance to the molten plastic).
- Benefits: Ensures even distribution of plastic within the mould, which is essential to maintain quality and prevent defects such as uneven shrinkage or stress concentrations that can lead to defects.
Flow Analysis
- Purpose: To assess the flow pattern of molten plastic into the mould.
- Benefit: Helps to avoid common flow-related defects, such as fusion lines, which can impair the aesthetics and strength of the final product.
Analysis of different plastic materials
- Purpose: To assess how different materials behave under specific conditions in the mould.
- Benefits: Identifies problems that can occur with materials that are difficult to flow or handle and provides insight into the adjustments required to handle unique material characteristics, thin walls or complex geometries.
Fibre orientation analysis
- Purpose: To determine the orientation of fibres (in fibre-reinforced materials) during the forming process.
- Benefits: Optimises the strength and mechanical properties of the final product and ensures that fibres are correctly aligned to enhance structural integrity.
Thermal Analysis
- Purpose: To study how heat is conducted and dissipated throughout the part during and after injection.
- Benefits: Helps to design more efficient cooling systems and prevent defects such as thermal degradation or residual stresses that can lead to warpage or structural weaknesses.
By leveraging these analyses, mold flow analysis not only predicts and solves potential product problems, but also drives advances in tooling and product design, ultimately leading to safer, more efficient and cost-effective manufacturing processes.

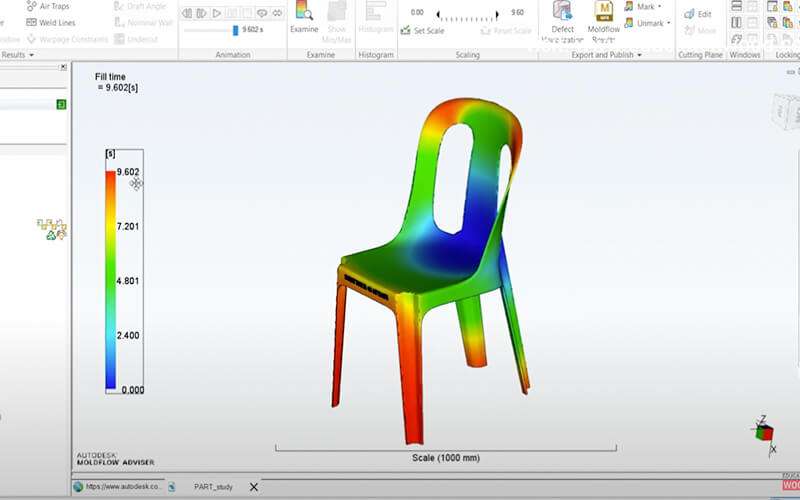

Advantages of Mold Flow Analysis in Injection Molding
Mold Flow Analysis (MFA) significantly enhances the entire scope of the injection molding process, from design to production, thereby increasing the success and efficiency of manufactured products.
Improve product quality
Streamline efficiency: By simulating the injection molding process, engineers can refine the conditions under which plastics are injected and cooled, ensuring consistent, high-quality end results.
Reduce Error Rates: MFA allows for early detection and correction of potential defects. By solving problems in a virtual environment, the quality of the end product is significantly improved and costly errors are reduced.
Reduce Manufacturing Costs
Prevent Costly Rework: Identifying and correcting design flaws or process inefficiencies in the early stages of mould design helps prevent costly rework and scrap.
Optimise material usage: MFA helps determine the optimum amount of material required, thereby reducing waste and lowering material costs. Simulation can help refine gate locations and runner dimensions to ensure material usage is minimised while maintaining product integrity.
Improve mould and part design
Enhanced DFM:MFA supports design for manufacturability, enabling engineers to evaluate, modify and optimise designs based on simulation results. This includes analysis of single/multi-cavity moulds to ensure part manufacturability, tool design, material selection and process optimisation.
Tool life: Optimising the moulding process through MFA reduces wear and stress on the tool, resulting in longer tool life and performance.
Reduced time-to-market for new products
Early Detection of Defects: MFA allows for early detection of potential manufacturing problems, the most common type of delay in the product development process. Correcting these problems before the mould is built or production begins can save significant development time.
Accelerated development cycles: By digitally simulating and adapting the mould design, fewer physical prototypes are required, resulting in shorter product development cycles and faster time-to-market.
Moldflow Analysis Success Stories
The use of Moldflow analysis has resulted in many success stories across a variety of industries, enabling companies to pre-empt potential quality risks, utilise comprehensive risk analysis, optimise designs and achieve impressive results.

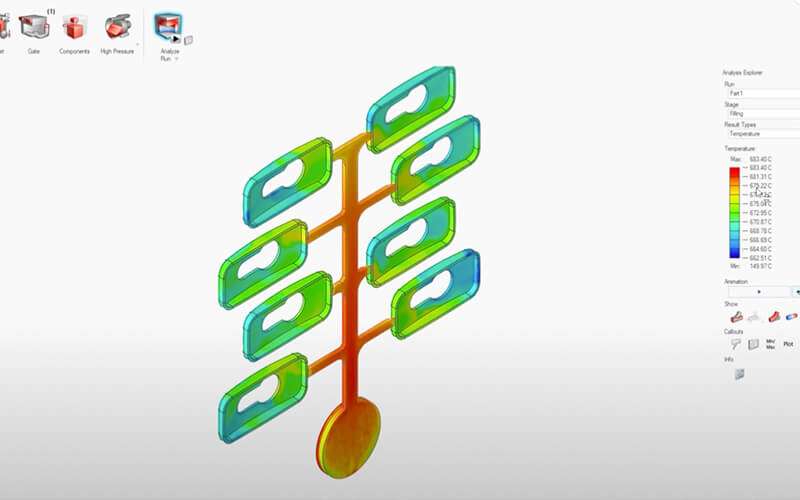

Case 1: Smart device housing
Go4 used Moldflow software to optimise a thin-walled housing for a popular smart device. Filling patterns and potential warpage were addressed by simulating multiple scenarios to determine optimal mould temperatures and injection speeds. This optimisation not only improved the quality of the final product, but also significantly reduced cycle time and increased productivity.
Case 2: Disposable Plastic Packaging Boxes
A packaging company specialising in high-volume disposable containers faced the challenge of inconsistent wall thicknesses, which impacted product durability and customer satisfaction. Using Moldflow analysis, Go4mould helped them to be able to simulate the injection molding process and adjust pressures and cooling times to achieve uniform wall thicknesses across their product range. After implementation, the company reported improved durability and a 30 per cent increase in customer satisfaction scores.
These success stories demonstrate how integrating Moldflow analysis into the design and manufacturing process can provide a proactive approach to identifying and resolving problems before they escalate into costly errors.
Go4mould offers you flexible and customizable moldflow analysis
In this article, we discuss the comprehensive capabilities of Moldflow analysis and its significant impact on the mould design and manufacturing process.
As a professional injection mould manufacturer in China, we offer flexible, customizable and accurate Moldflow analysis services. Our expertise ensures that each mould is tailored to meet the specific needs of the customer, from conceptual design to final production, guaranteeing optimum performance and cost-effectiveness.
Are you ready to improve product quality, reduce manufacturing risks and optimise production processes? Contact us today to learn how our advanced Moldflow analysis services can be adapted to your unique needs.
FAQ
Does every injection molding project need mold flow analysis?
Not necessarily. While mold flow analysis is a valuable tool for many molding projects, it is not a necessary tool for all projects. Projects involving particularly simple moulds without complex designs or materials may not require the detailed analysis offered by mold flow software. In such cases, traditional experience and simpler checks may be sufficient.
However, for projects involving complex designs, advanced materials or high-volume production, mold flow analysis is essential to ensure product quality and manufacturing efficiency.
When should mold flow analysis be used?
Mold flow analysis is most effective when applied before the mould manufacturing process begins. Using this analysis in the early stages of mould design allows potential technical problems to be identified and corrected. This proactive approach saves time and money by helping to avoid wasted material and costly rework. Advance analysis ensures that the molding process is successful from the outset, optimising production cycles and reducing the risk of errors in the final product.
