Weld lines, also known as knit lines, are common defects in injection molding that occur when two or more flow fronts of molten plastic converge but do not fully bond. These lines can compromise molded parts’ aesthetic appearance and structural integrity, making their identification and resolution crucial in manufacturing.
Studies indicate that weld lines can significantly impact the final product’s strength, appearance, and functionality.
In this blog, we’ll explore the causes of weld lines, their effects on product quality, and practical strategies for preventing and troubleshooting these defects in injection molding processes.
Causes of Weld Lines
Weld or knit lines indicate areas where two or more melt fronts have come together during injection molding but have not joined wholly. These lines can reduce the appearance and dimensional quality of parts produced by molding, so understanding and solving them is essential in manufacturing.
Material-Related Factors
- Viscosity and Flow Characteristics: Materials with high viscosity may flow only partially well; therefore, there can be inadequate coalescence at the flow interfaces. Several rules must be followed to avoid weld lines and maintain good material flow properties.
- Additives and Fillers: Certain additives affect flow behavior, which can lead to the formation of weld lines. Choosing the right additives and ensuring proper blending can alleviate this.
Mold Design Considerations
- Gate Placement and Number: The flow fronts produce weld lines if there are different vertical multiples, too many gates, or improperly placed gates. The gates must be placed precisely to maintain equal velocity and eliminate weld lines.
- Cooling System Efficiency: Consistent cooling is necessary since irregular cooling results in uneven contraction and, thus, weld line defects. Thus, incorporating a proper cooling design also supports the management of consistent temperatures and the minimization of such kinds of defects.

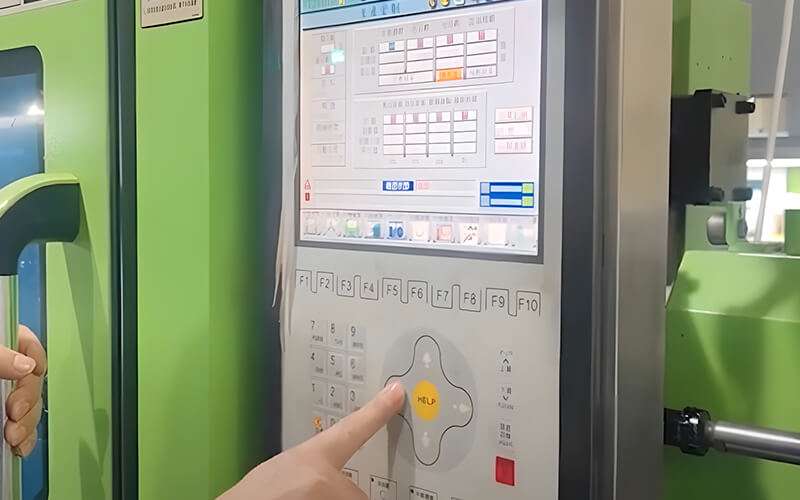

Processing Parameters
- Injection Speed and Pressure: Inadequate settings of flow fronts may hinder the recommended merging process. Controlling the rate and force at which injections are administered helps avoid weld lines by ensuring that flow fronts join up perfectly.
- Melt and Mold Temperatures: Low temperatures may prevent part fusion due to early solidification. Temperature control is critical for imparting melds and mold tempers for excellent bonding at the flow front.
Strategies for Preventing Weld Lines
Eliminating weld lines in injection molding is critical to the strength and appearance of molded parts. Several approaches can be taken to minimize the appearance of these defects, including proper material selection, tool design, and setting favorable processing parameters.
Material Selection and Preparation
Selecting the right material and correctly preparing it are still among the most basic ways to reduce the presence of weld lines.
- Choosing Appropriate Materials: Consequently, selecting resins with appropriate flow characteristics improves the material’s ability to fill the mold uniformly, minimizing weld line formation. Materials with high flow rates can more effectively interact with geometries that may be difficult to access, guaranteeing fusion at the flow fronts.
- Proper Drying and Handling: Moisture and contaminants in the material cause defects, which require an optimal flow characteristic. Resins should be well-dried to avoid problems such as splay marks and weld lines. Proper handling in a clean environment is also encouraged.
Optimizing Mold Design
If designed properly, the mold ensures smooth feed flow of the material and the reduction of weld lines.
- Strategic Gate Placement: It is imperative to place gates to encourage balanced filling patterns. Some gates should be positioned to help direct the flow of the molten plastic so that several fronts do not converge, resulting in weld lines.
- Enhanced Ventilation: Appropriate vents should be installed to release the trapped air while injecting. Appropriate venting eliminates cavities on the flow front and patch-like structures in the part, which in turn cause weld lines and defects.
Adjusting Processing Parameters
Adjusting processing conditions has been pointed out as having a significant role in avoiding weld lines.
- Modifying Injection Speed and Pressure: Injection speed and pressure are well controlled so that flow fronts overlap. Higher injection speeds and pressures also increase the heat available to the molten plastic, encouraging improved fusion at the merging points of flow fronts.
- Controlling Melt and Mold Temperatures: The melt and mould temperatures must be maintained properly. Desirable temperatures also avoid early solidification of the material, enable convergence of flow fronts, and minimize the formation of weld lines.
Techniques for Detecting and Analyzing Weld Lines
Identification and subsequent characterization of weld lines in injection-molded parts are essential for product quality and reliability assessment. The good news is that using a variety of tactics, measures can be taken to recognize such defects in the early stages.
Visual Inspection
Locating easily seen layers or faded regions on the surface of the part being analyzed is easy with this method. One has to look at the molded part and try to discover signs that it has been welded. However, it may not find subsurface defects. Be aware that it is simple.
Non-Destructive Testing (NDT)
Some methods include ultrasonic testing to show internal weld lines without compromising the part. NDT techniques, therefore, permit the examination of the inner structure, preserving the structural performance of the weld lines.
Related reading: Injection mold trials
Simulation Software

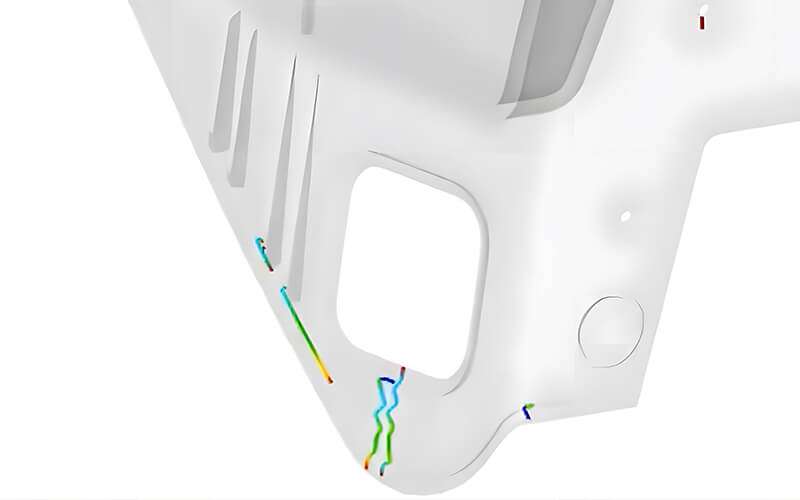

Computer applications and simulations to evaluate the location of the weld line during the design stage. Moldflow helps the designers predict the probable instances of weld lines and correct them at a preliminary stage.
Wrap Up
Effectively detecting and analyzing weld lines is crucial for maintaining the quality and durability of injection-molded products. By employing techniques such as visual inspection, non-destructive testing, and simulation software during the design phase, manufacturers can identify potential issues early and implement corrective measures to prevent defects.
