Flip top cap mould for sale
Looking for a reliable flip-top cap mould that delivers consistent quality and boosts your production efficiency? You’re in the right place. At Go4Mould, we’ve helped 50+ global manufacturers achieve faster production cycles, lower costs, and superior product quality through our precision-engineered flip-top cap injection molds.
Key features of our flip top cap moulds
- Precision engineering: Manufactured with S136 hardened steel (HRC 48-52) for exceptional durability
- High efficiency: Available in 8, 16, 24, 32, 48, 64, and 96 cavities
- Advanced cooling: Hot runner systems with precise temperature control
- Custom design: Tailored to your specific bottle size and branding requirements
- Long lifespan: Designed for 500,000+ injection cycles
- Specifications
- Factory
Flip top cap mold specifications & customization options
Standard Specifications
| Parameter | Options | Recommendation |
|---|---|---|
| Cavity Count | 8, 16, 24, 32, 48, 64, 96 | 16-32 cavities for optimal efficiency |
| Steel Material | S136, P20, H13, NAK80 | S136 recommended for durability |
| Hardness | HRC 45-55 | HRC 48-52 for best performance |
| Hot Runner | INCOE, Moldmasters, Husky | Temperature control ±2°C |
| Cooling System | Conformal cooling channels | Reduces cycle time by 20% |
| Surface finish | Mirror polish, texture, matte | Ra 0.2μm for smooth operation |
Customization Capabilities
Design Flexibility
- Cap diameter: 18mm – 45mm
- Height variations: 8mm – 25mm
- Custom logos and branding (debossed/embossed)
- Color-matched samples available
Technical Customization
- Variable wall thickness (0.8mm – 2.5mm)
- Different hinge mechanisms (living hinge, tethered cap)
- Tamper-evident features
- Child-resistant modifications (where required)
Material Compatibility
- HDPE: Most common, excellent chemical resistance
- PP: Higher temperature resistance, dishwasher safe
- PET: Crystal clear appearance, premium feel
- Bio-based plastics: Sustainable options available
Why 100+ global customers trust Go4mould
“Working with Go4Mould transformed our production line. Their flip top cap mould increased our efficiency by 40% and the quality consistency is outstanding.”
– Marcus Weber, Production Manager, BeautyCorp Germany
“The technical expertise and customer service from Go4Mould is exceptional. They delivered exactly what they promised, on time and within budget.”
– Jennifer Liu, Procurement Director, Pacific Packaging USA
“Best mold supplier we’ve worked with in 15 years. The flip top cap mould has been running flawlessly for 800,000+ cycles.”
– David Thompson, Manufacturing Director, CleanCo Australia
Various bottle cap mould
What is flip top cap mold?
A flip top cap mold is a specialized plastic injection molding tool designed to manufacture flip-top caps for bottles and containers. Unlike traditional screw caps, flip top caps feature a hinged mechanism that allows one-handed operation – perfect for products used in bathrooms, kitchens, or on-the-go situations.
With the flip top cap mould, manufacturers can produce caps that not only serve their primary function of sealing and protecting the product but also provide added convenience and user-friendly features. The mould allows customization, including branding elements, color variations, and specific design requirements, to meet businesses’ unique branding and product specifications.

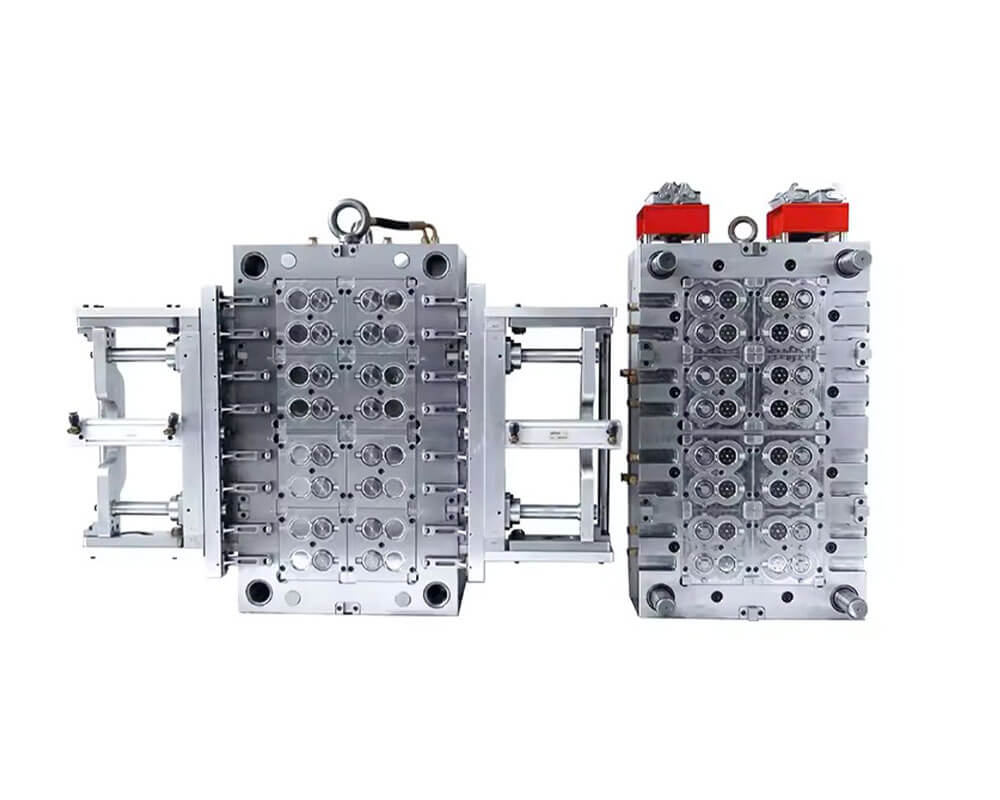

Figure 1: 24 cavity flip top cap mould
Flip top cap mould product list

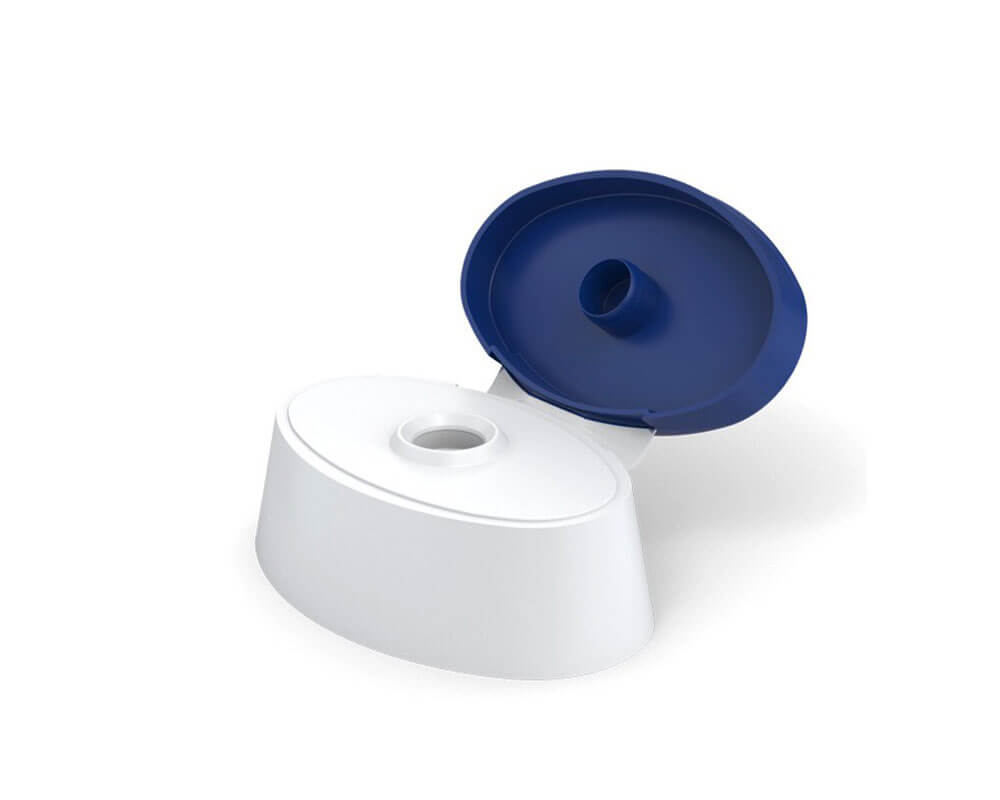

Square Flip Top Sampoo Cap Plastic Injection Mould
Two color flip top cap mold: 2k injection mold process
Two color flip top cap with in-mold auto-closing mold
Two color jar cap flip top lid injection mold

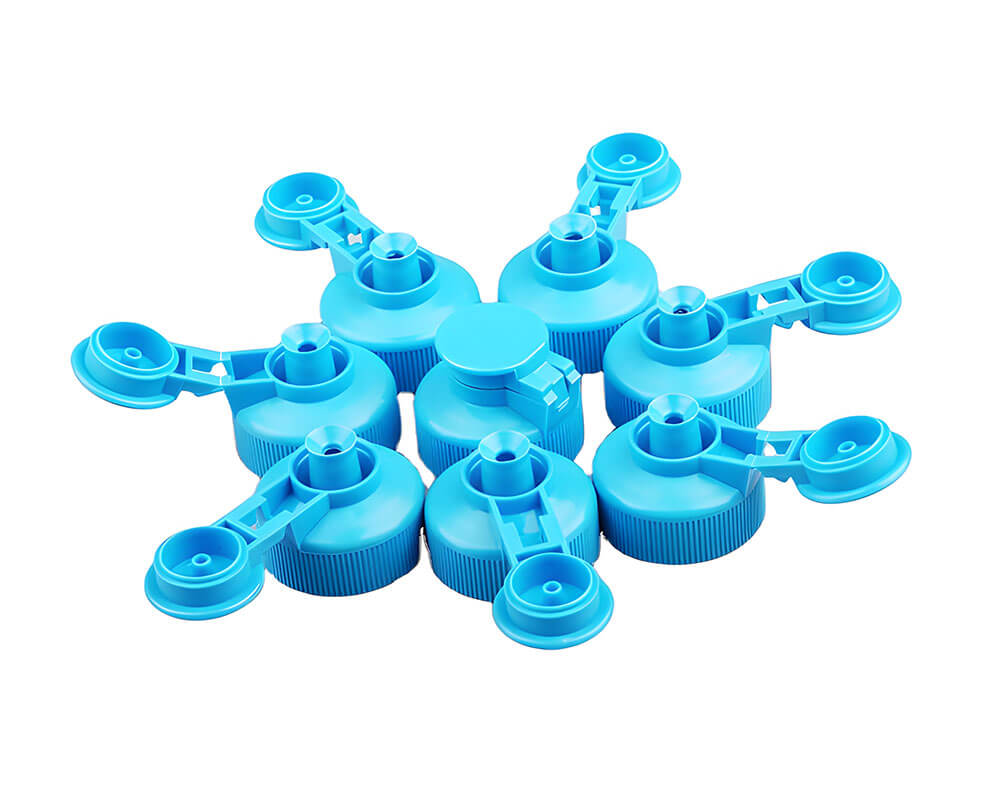

Flip-top cap plastic injection mold

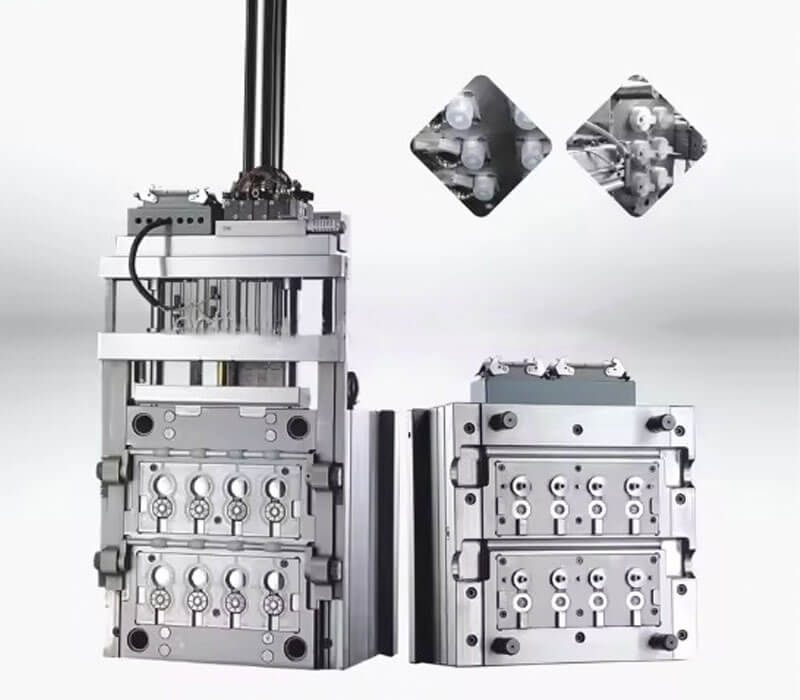

8 cavity Flip Top Cap Mould
12 cavity Flip Top Cap Mould
24 cavity Flip Top Cap Mould

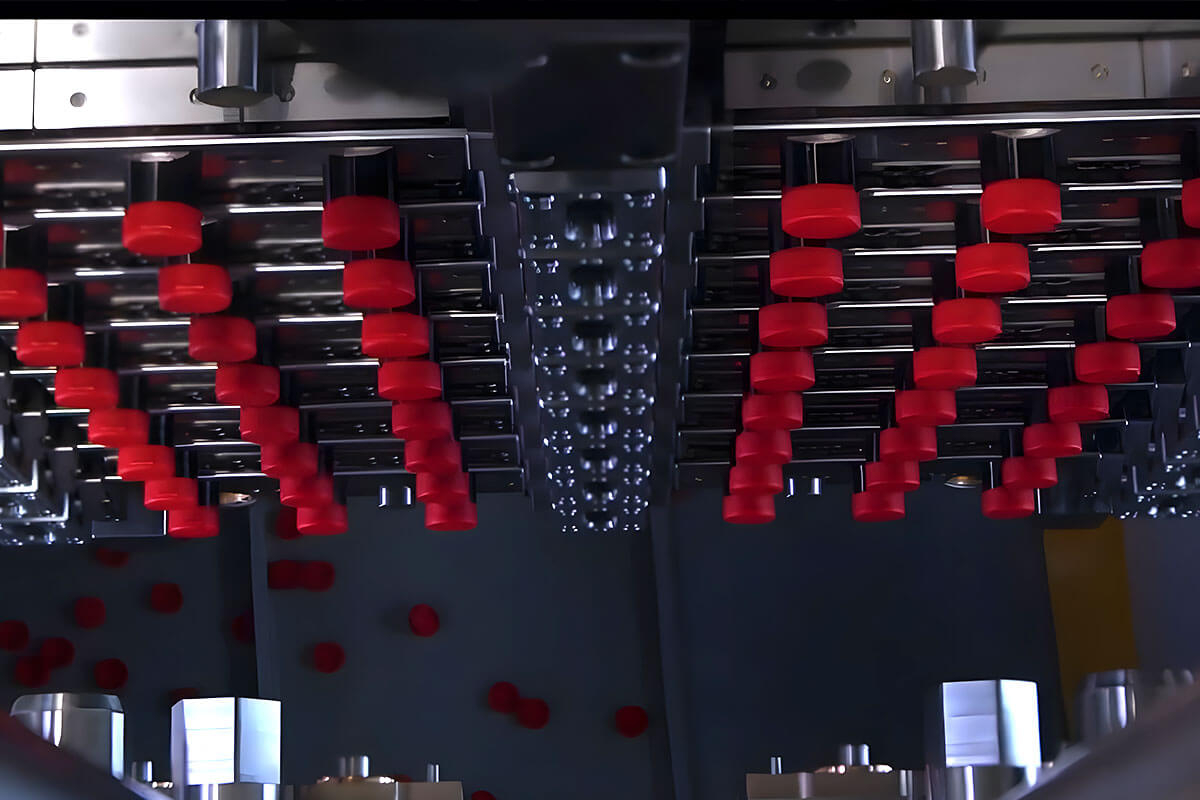

48 cavity Flip Top Cap Mould
How to choose the right flip top cap mold
Step 1: Define Your Production Requirements
Volume Assessment:
- Annual production volume
- Peak season demand
- Growth projections (next 3-5 years)
Step 2: Material selection guide
| Material | Best For | Pros | Cons |
| HDPE | General purpose, chemicals | Excellent chemical resistance | Limited transparency |
| PP | Food, hot-fill applications | High temperature, dishwasher safe | Lower impact strength |
| PET | Premium cosmetics | Crystal clear, premium feel | Higher processing temperature |
| PC | Industrial applications | High impact, temperature resistant | More expensive |
Step 3: Feature prioritization
Essential Features (must-have):
- Proper sealing mechanism
- Smooth hinge operation
- Easy-release ejection system
- Consistent wall thickness
Premium Features (nice-to-have):
- Hot runner system (reduces waste)
- Conformal cooling (faster cycles)
- In-mold labeling capability
- Quick-change inserts
Step 4: Supplier evaluation checklist
When choosing a flip top closure mould manufacturer, consider:
| Criteria | Go4Mould | Questions to Ask Other Suppliers |
| Experience | ✅ 10+ years, 50+ projects | How many flip top molds have you made? |
| Quality Certification | ✅ ISO 9001, FDA compliant materials | What certifications do you hold? |
| Design Capability | ✅ In-house engineering team | Do you have design engineers? |
| Testing Facility | ✅ Complete injection molding line | Can you test molds before shipping? |
| After-sale Support | ✅ 2-year warranty, remote support | What’s your warranty policy? |
| Lead Time | ✅ 45 days average | What’s your typical delivery time? |
Real case studies: Success stories from our clients
Case Study 1: Premium Cosmetics Brand – 40% Efficiency Boost

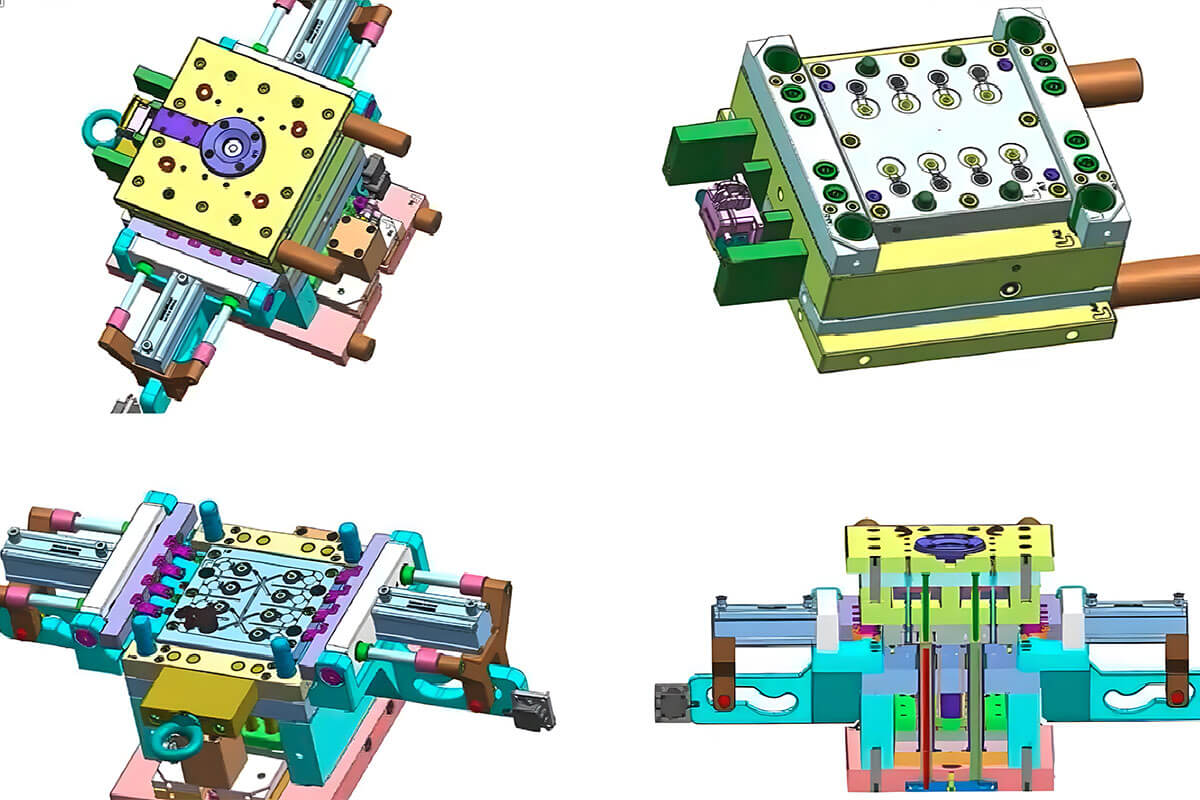

Flip-top-cap-mould-design
Client Background: Leading skincare company in Europe, producing 2M bottles annually
Challenge:
- Previous supplier’s molds had inconsistent cap quality
- Production downtime due to frequent mold maintenance
- High rejection rate (8%), causing significant waste
Our Solution:
- Designed 32-cavity flip top cap mold with S136 steel
- Implemented conformal cooling for uniform temperature
- Added automatic degating system
Results Achieved:
- Production efficiency increased by 40% (from 600 to 840 caps/hour)
- Rejection rate dropped to 0.3% (saving €45,000 annually)
- Mold lifespan exceeded 850,000 cycles (original estimate: 500,000)
- Energy consumption reduced by 18% due to optimized cooling
Timeline: 45 days from design approval to delivery
Case study 3: Food industry – Cost optimization success
Client Background: Condiment manufacturer, annual volume 5M bottles
Challenge:
- Cost pressure from retail customers
- Need to maintain premium product appearance
- Seasonal demand fluctuations
Our Solution:
- Designed modular 24-cavity mold with insert system
- Hot runner with zone control for different products
- Quick-change capability for seasonal variants
Results Achieved:
- Total cost reduction: 22% (mold + operation combined)
- Changeover time reduced from 4 hours to 45 minutes
- Flexibility to handle 6 different cap sizes with one mold
- Paid for itself in 8 months (ROI: 150% annually)
Common questions about flip top cap moulds
1. How long does a flip top cap mold last?
Answer: Our S136 steel molds typically achieve 500,000 to 1,200,000 injection cycles. Factors affecting lifespan include:
- Material type (HDPE lasts longer than PET)
- Production volume and frequency
- Maintenance schedule adherence
- Operating temperature conditions
Pro Tip: Regular maintenance can extend mold life by 25-30%.
2. What’s the minimum order quantity for custom flip top cap molds?
Answer: Our minimum order quantity is 1 mold set. However, for cost efficiency, we recommend:
- Single cavity: Prototypes and low-volume production
- 8-16 cavity: Medium volume (< 1M annually)
- 24-48 cavity: High volume (1-5M annually)
- 64+ cavity: Very high volume (5M+ annually)
3. Can you make child-resistant flip top caps?
Answer: Yes, we specialize in CR (Child Resistant) flip top designs. Our CR mechanisms include:
- Push-down and turn system
- Squeeze and lift mechanism
- Two-stage opening process
- Compliance with CPSC standards
4. How much does a flip top cap mould cost?
Answer: Pricing varies based on complexity and specifications:
| Cavity Count | Price Range (USD) | Best For |
| 8 cavity | $8,000 – $12,000 | Small batch production |
| 16 cavity | $12,000 – $18,000 | Medium volume |
| 24 cavity | $18,000 – $25,000 | High volume |
| 32+ cavity | $25,000 – $45,000 | Mass production |
Prices include hot runner system and standard features.
5. What’s the typical lead time for a custom flip top cap mold?
Answer: Our standard timeline:
- Design & Engineering: 7-10 days
- Customer approval: 3-5 days
- Manufacturing: 25-35 days
- Testing & validation: 3-5 days
- Shipping: 3-7 days
- Total: 45-60 days for most projects
6. Can the mould handle different plastic materials?
Answer: Yes, our molds are designed for versatility:
- HDPE (most common)
- PP (higher temperature resistance)
- PET (crystal clear)
- PC (high impact strength)
- Bio-based plastics (sustainable options)
Each material may require slight temperature adjustments, which our hot runner systems handle automatically.
