The Ultimate Guide to Beryllium Copper Injection Moulds

Figure 1: Beryllium Copper injection mould

Beryllium Copper alloys stand out for their superior application in a wide range of areas such as injection mould inserts, cores, die-casting punches, hot runner cooling systems and automotive moulds.

Beryllium Copper is the material of choice for Go4Mould as we look to increase productivity through shorter cooling times, faster cycle times and improved mould life. In real-world production, whether it’s a bucket mould, a thin-walled multi-cavity mould, or a precision automotive part, the thermal conductivity and strength of Beryllium Copper alloy moulds are unmatched. In this blog, we will delve into the advantages of beryllium copper alloy and its application in different moulds, and introduce basic maintenance and care methods.

Beryllium Copper bucket mould

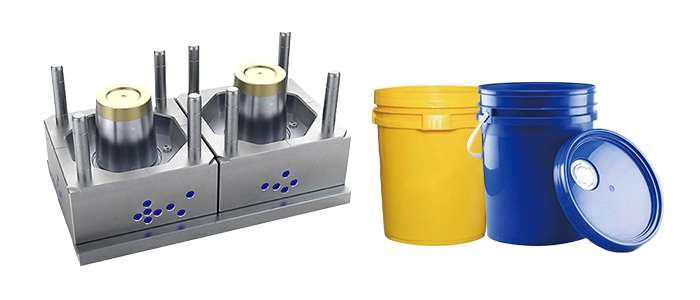

Figure 2: Beryllium Copper bucket mould

Beryllium Copper Alloy Advantages in Injection Moulding

1:Adequate hardness and strength

Meets Industry Requirements

As we know, the hardness of Beryllium Copper is HRC36-42, which meets the most stringent requirements in plastic mould-making.

Extended Mould Life

The strength of the alloy increases the life of the mould, greatly reducing the need for frequent replacement and maintenance.

Improved dimensional stability

This hardness helps maintain accurate dimensions of moulded parts, ensuring consistent quality and reducing production downtime.

2: Excellent wear resistance

The wear resistance of beryllium copper extends the life of your moulds, making your moulds more cost-effective.

3: Corrosion resistance

Reduces the risk of part contamination

The corrosion resistance of the alloy ensures that the quality of the moulded part is not compromised, preventing potential contamination.

Maintains consistent production results

Corrosion resistance prevents corrosion-induced defects, thus ensuring the production of high-quality, consistent parts.

4: Self-lubricating (smooth surface)

Reduced Friction

Reduced Friction

The self-lubricating properties of Beryllium Copper reduce friction between the mould and the part, thus improving the ejection process. It gives you smoother and more efficient plastic part ejection during plastic injection moulding.

Reduced Maintenance Costs

By minimising wear and tear on the mould, maintenance requirements can be reduced, resulting in more uninterrupted plastic part production runs.

5: Thermal Conductivity

Rapid Heat Dissipation

Beryllium Copper can reduce cooling time by as much as 40%, speeding up production cycles.

Increased High Material Temperature

Reduced wall thickness reduces product cost.

Reduces Energy Consumption

Efficient thermal management helps reduce energy costs by optimising cooling times and reducing the need for excessive cooling resources.

We all know that beryllium copper is relatively expensive compared to other steels. But within our budget, by taking advantage of the excellent qualities of Beryllium Copper, we not only ensure the production of high-quality injection moulded parts but also improve the life and quality of the moulds.

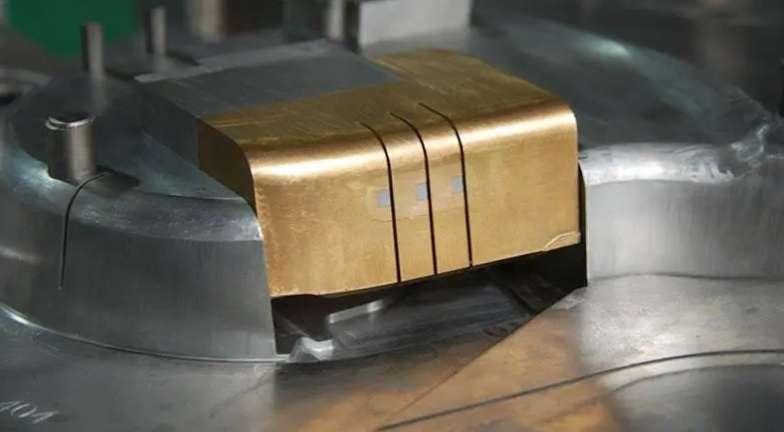

Beryllium Copper Alloy Advantages in Injection Moulding

Beryllium copper alloys in different types of injection moulds

Go4Mould engineers take advantage of the high performance of beryllium copper alloys to meet the moulding needs of customers in a wide range of moulds, from everyday product moulds to specialist medical moulds.

  • High-precision components:
    • Mould inserts and cores: The thermal conductivity of copper beryllium ensures even heat distribution, minimising warpage and defects.
    • Hot runner cooling systems and heat transfer nozzles:** Beryllium copper improves the efficiency of hot runner systems and nozzles by promoting rapid heat transfer
  • Thin Wall Container Moulds: Beryllium Copper ensures rapid cooling, as well as uniform wall thickness and reduced cycle times.
  • Bucket Moulds: Beryllium Copper’s durability and thermal efficiency meet the demands of high-volume production and ensure consistent quality.
  • Medical Moulds: In medical applications, beryllium copper’s corrosion resistance and precision make it ideal for producing the complex sterile parts required for medical devices and packaging.

Maintenance and care of beryllium copper alloy moulds

1: Although beryllium copper has many advantages, it is brittle. Therefore, we should not be subjected to violent impact during the use of the mould.

2: Avoid exposing the mould to high temperatures for a long time, otherwise it will change the material properties of beryllium copper and affect its performance.

3: When not in use, the mould should be stored in a clean and dry environment to prevent corrosion.

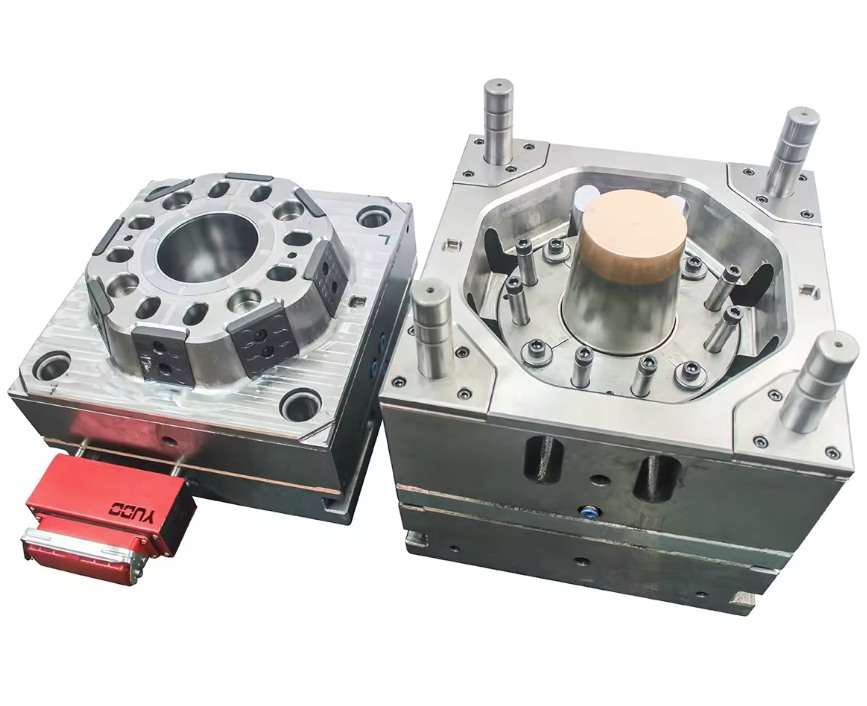

Beryllium copper alloys in different types of injection moulds

Conclusion-Beryllium Copper injection mould

In this guide, we have taken an in-depth look at the benefits and individual applications of beryllium copper alloys in injection moulding. From adequate hardness and strength, excellent wear and corrosion resistance, to self-lubricating properties and excellent thermal conductivity, beryllium copper is the material of choice for increasing productivity, extending mould life and ensuring high-quality injection moulded parts.

Go4Mould has used Beryllium Copper in a variety of demanding applications such as high-precision parts, thin-walled food-grade containers, bucket moulds and medical moulds. If you are looking for a professional injection moulding solution, Go4Mould is the right choice.
